DJI AVL58 5.8G VideoLink

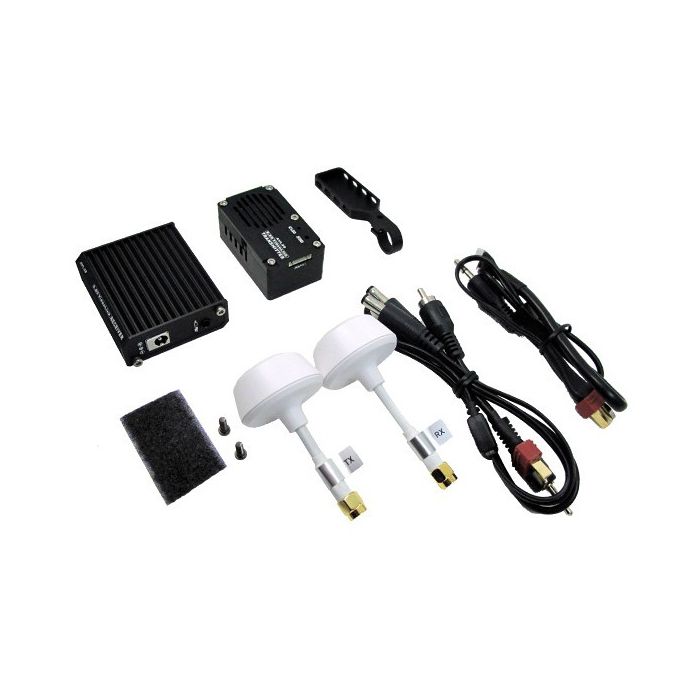

DJI AVL58 5.8G VideoLink Illustrated transceiver module (TX + RX)


Main features:
- 5.8GHz operating frequency, 8 channels optional
- Long-distance transmission stability
- Optional the the DJI petals antenna (transmission distances of up to 1.2km)
- Supports standard SMA antenna
- Remote switching working channel


The DJI AVL58 is a universal 5.8GHz 500mW wireless Illustrated has unobstructed transmission distance of
not less than 1.2km. The transmitter and receiver are made ​​of aluminum alloy shell, not only rugged, more
conducive to heat. Transmitter built-in cooling fan, it channels through manual button or remote control switch.
The DJI AVL58 DJI iOSD system is also ideal match.




Performance parameters:
Transmission distance: 1.2km
Transmit power: 28dBm ± 1dBm
Receiver sensitivity:-90dBm ± 2dBm
Working channel:
CH1: 5705MHz CH5: 5885MHz
CH2: 5685MHz CH6: 5905MHz
CH3: 5665MHz CH7: 5925MHz
CH4: 5645MHz CH8: 5945MHz
Optimum temperature range: -20 ℃ ~ 70 ℃
Size:
500mm x 300mm x 220mm (TX)
555mm x 480mm x 170mm (RX)
Weight: 39g (TX) / 49.5g (RX)
Operating voltage: 3S-6S Li-Po
Operating Current:
575mA ± 50mA @ 12V (TX)
90mA ± 10mA @ 12V (RX)
