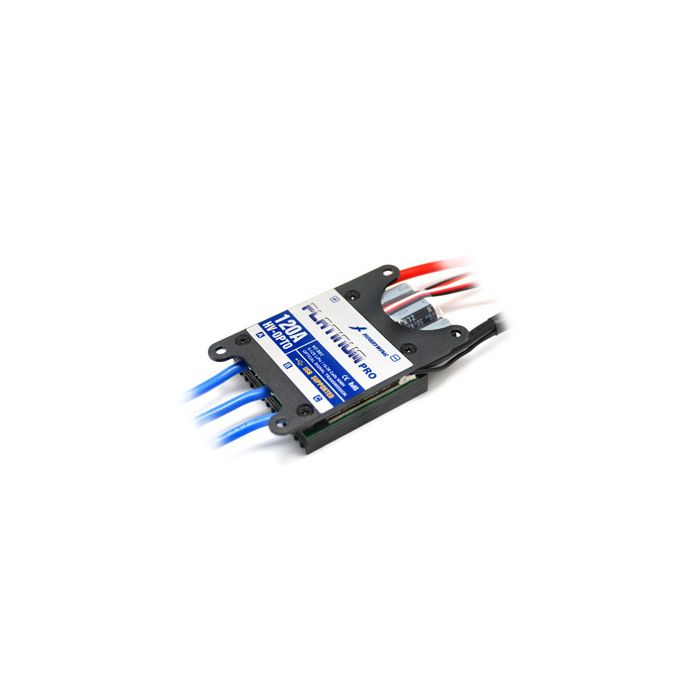

Platinum-120A-HV-OPTO-PRO HWG130
105,74 €
Non Disponibile
SKU
HWG130
Platinum-120A-HV-OPTO-PRO HWG130
Platinum-120A-HV-PRO
CLASS:
AIRCRAFT SYSTEM-->Platinum Series (Professional)
Application:
a. 600/700 class heli 3D
b. 5-8kg large scale fixed-wing airplane, 2m F3A or 3D
c. 35cc gas powered converts to electric powered
Note:
Sep 2011, Hobbywing released a new firmware for Platinum-120A-HV PRO ESC (Hardware version = HW120_V2.0A, firmware verison = V1.08_101106_U) to make it compatible with Mikado V-Bar governor function.
"Platinum" series ESC has the best performance, it is the top-class product for RC airplane and helicopter.
1 Specification
1.1 Output: Continuous 120A, burst 180A up to 10 seconds.
1.2 Input Voltage: 5-12 cells lithium battery or 15-36 cells NiMH battery.
1.3 BEC: None.
1.4 Control Signal Transmission: Optical/electrical coupled system.
1.5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
1.6 Size: 88mm (L) * 55mm (W) * 15mm (H).
1.7 Weight: 125g.
2 Features
2.1 High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.
2.2 Anti-spark circuit eliminates sparks when the battery pack is connecting with the ESC.
2.3 Three types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
2.4 Smooth, linear, quick and precise throttle response.
2.5 Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
2.6 The throttle signal is transfered through optical/electrical coupled system to avoid electromagnetic interference.
2.7 Perfect governor mode for helicopter.
2.8 Wide-opened heat-sink has the best heat dissipation effect.
2.9 The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.
2.10 User programmable.
2.11 Multiple program methods supported: transmitter stick, Digital LED Program Card, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.
CLASS:
AIRCRAFT SYSTEM-->Platinum Series (Professional)
Application:
a. 600/700 class heli 3D
b. 5-8kg large scale fixed-wing airplane, 2m F3A or 3D
c. 35cc gas powered converts to electric powered
Note:
Sep 2011, Hobbywing released a new firmware for Platinum-120A-HV PRO ESC (Hardware version = HW120_V2.0A, firmware verison = V1.08_101106_U) to make it compatible with Mikado V-Bar governor function.
"Platinum" series ESC has the best performance, it is the top-class product for RC airplane and helicopter.
1 Specification
1.1 Output: Continuous 120A, burst 180A up to 10 seconds.
1.2 Input Voltage: 5-12 cells lithium battery or 15-36 cells NiMH battery.
1.3 BEC: None.
1.4 Control Signal Transmission: Optical/electrical coupled system.
1.5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
(BLM = BrushLess Motor)
1.6 Size: 88mm (L) * 55mm (W) * 15mm (H).
1.7 Weight: 125g.
2 Features
2.1 High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.
2.2 Anti-spark circuit eliminates sparks when the battery pack is connecting with the ESC.
2.3 Three types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
2.4 Smooth, linear, quick and precise throttle response.
2.5 Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
2.6 The throttle signal is transfered through optical/electrical coupled system to avoid electromagnetic interference.
2.7 Perfect governor mode for helicopter.
2.8 Wide-opened heat-sink has the best heat dissipation effect.
2.9 The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.
2.10 User programmable.
2.11 Multiple program methods supported: transmitter stick, Digital LED Program Card, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.
